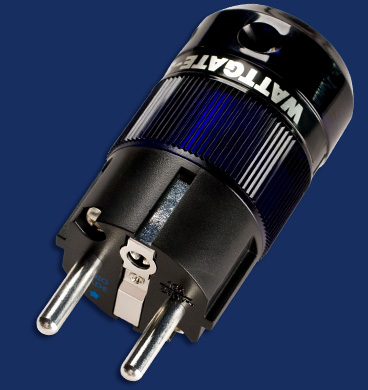

390i AG Audio Grade Power Plug

  • Audio Grade

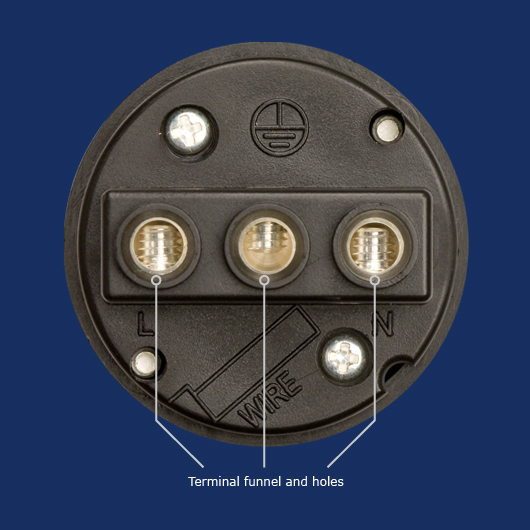

  • Large screw down terminals
  • Accepts 10 to 16 awg wire
  • Accepts 16mm cable diameter
  • Glass filled high temperature nylon front housing
  • Polycarbonate rear housing
  • Stainless hardware
  • Wattgate Three Layer Plating Process*
  • 16A/250VAC

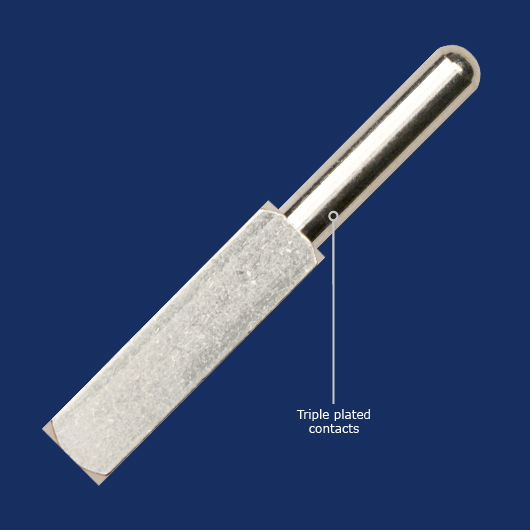

*WATTGATE Three Layer Plating Process
1. Oxygen free copper plating
improves conductivity
2. Electroless nickel plating
necessary to prevent the leeching of the copper through the pure silver layer
3. Pure silver plating
improves conductivity
Cryo Treated Logo
Wattgate 390i AG

click images for details

390i AG detail 1
390i AG detail 2
390i AG detail 3

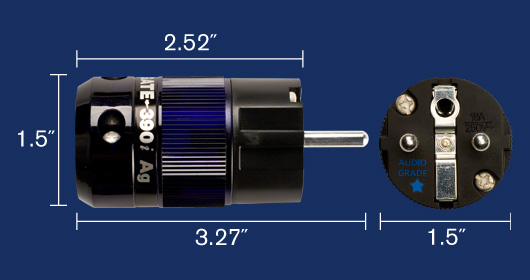

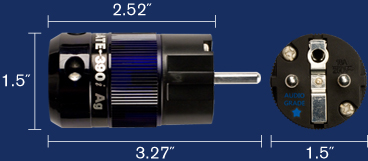

size specifications

390i AG measurements
