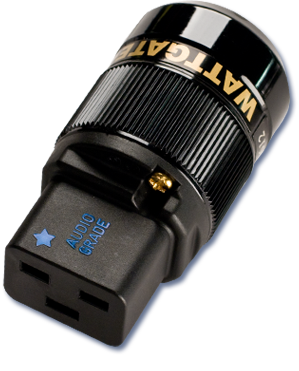

350i HC Audio Grade High Current IEC
- ★ Audio Grade
- Large, high spring-rate contacts
- Perma-Lock Terminals
- Accepts 10 to 16 awg wire
- Accepts 16mm cable diameter
- Glass filled high temperature nylon front housing
- Polycarbonate rear housing
- Stainless hardware
- Wattgate Three Layer Plating Process*
- 20A/125VAC or 250VAC
- Some classifications are 16A/250VAC

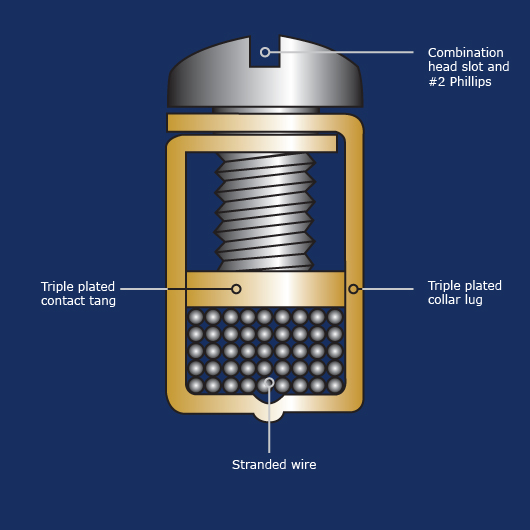

- *WATTGATE Three Layer Plating Process
- 1. Oxygen free copper plating
- improves conductivity
- 2. Electroless nickel plating
- necessary to prevent the leeching of the copper through the pure gold layer
- 3. 24k gold plating
- improves conductivity
click images for details

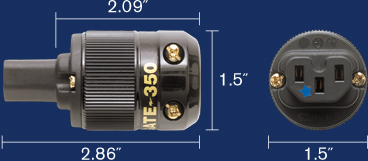

size specifications
