320 evo Standard IEC Connector

  • WattLock terminals - Heavy duty wire capture box
  • Accepts 8 to 14 awg wire
  • Accepts 19mm cable diameter
  • 2.5mm Hex socket hardware
  • All Polycarbonate design
  • All non-magnetic materials
  • High spring rate brass contacts
  • 15A/125VAC
  • 10A/250VAC
  • 15A/250VAC
Cryo Treated Logo

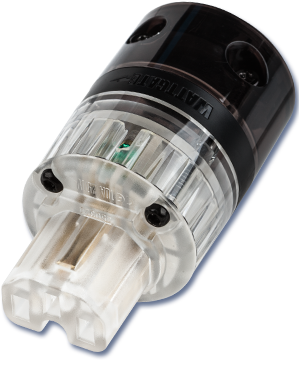

Wattgate 320evo 320evo small

click images for details

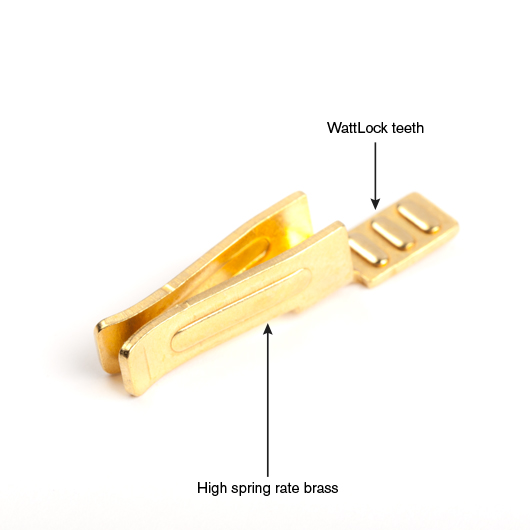

320 evo contact
WattLock Box Detail

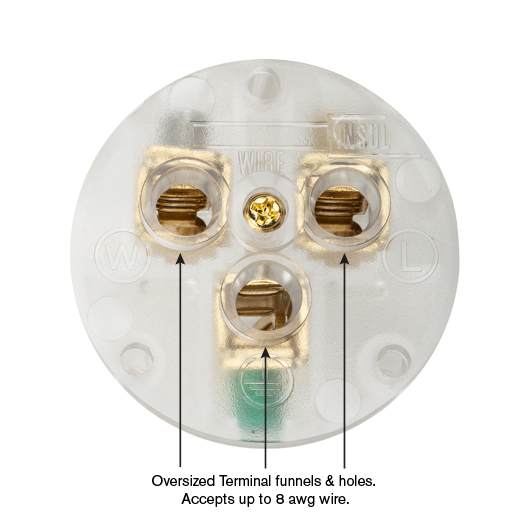

320 evo funnels

size specifications

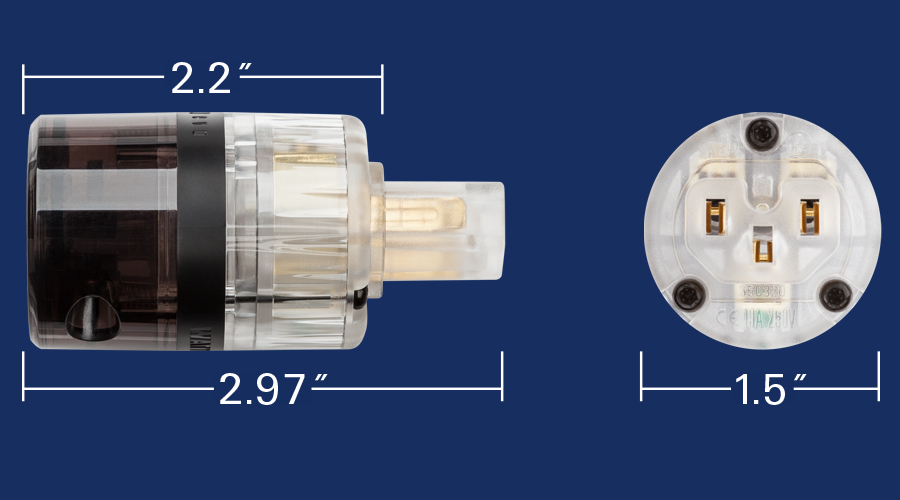

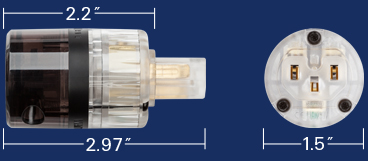

320 evo measurements
