390 AU evo Standard Power Connector

  • Audio Grade
  • Set screw terminals - Heavy duty wire capture box
  • Accepts 8 to 14 awg wire
  • Accepts 19mm cable diameter
  • 2.5mm Hex hardware for external components
  • 2.0mm Hex hardware for internal terminal screws
  • All Polycarbonate design
  • All non-magnetic materials
  • High spring rate brass contacts
  • WATTGATE Three Layer Plating Process*
  • 16A/250VAC
*WATTGATE Three Layer Plating Process
1. Oxygen free copper plating
improves conductivity
2. Electroless nickel plating
necessary to prevent the leeching of the copper through the pure gold layer
3. 24k gold plating
improves conductivity
Cryo Treated Logo

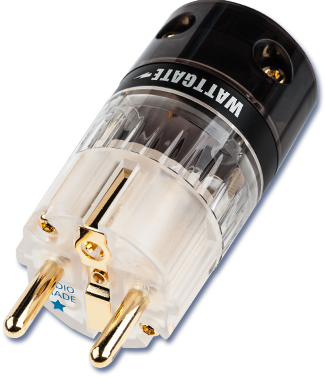

Wattgate 390auevo 390auevo small

click images for details

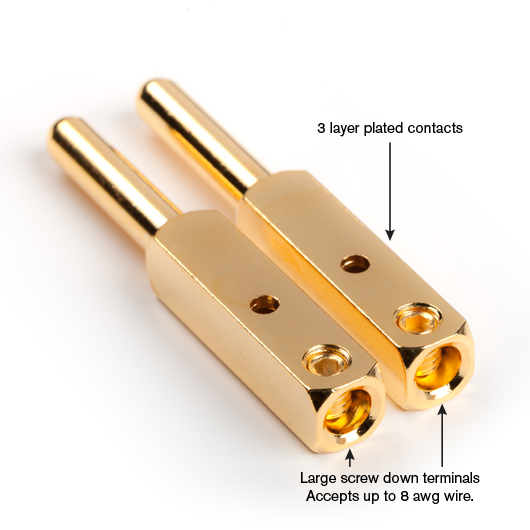

390 au evo contact

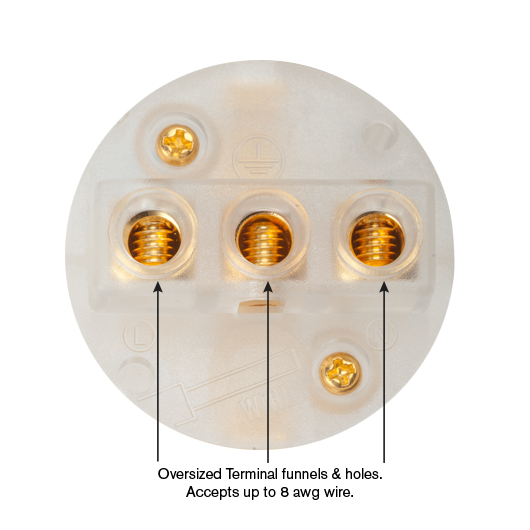

Terminal funnels

size specifications

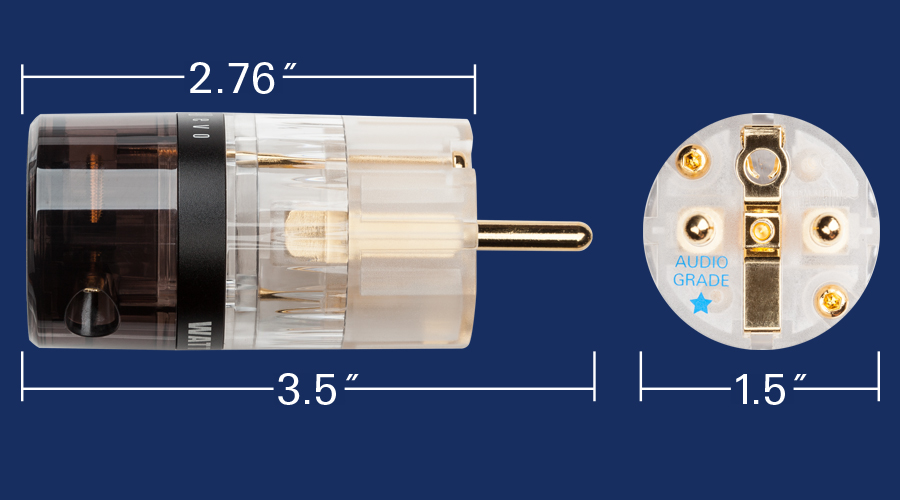

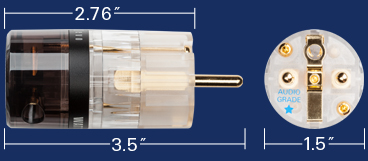

390 au evo measurements
