370 AU evo Audio Grade C7 Connector

  • Audio Grade
  • WattLock terminals - Heavy duty wire capture box
  • Accepts 8 to 14 awg wire
  • Accepts 19mm cable diameter
  • 2.5mm Hex socket hardware
  • All Polycarbonate design
  • All non-magnetic materials
  • Phosphor bronze contacts
  • WATTGATE Three Layer Plating Process*
  • 2.5A/250VAC
  • 10A/125VAC
*WATTGATE Three Layer Plating Process
1. Oxygen free copper plating
improves conductivity
2. Electroless nickel plating
necessary to prevent the leeching of the copper through the pure gold layer
3. 24k gold plating
improves conductivity
Cryo Treated Logo

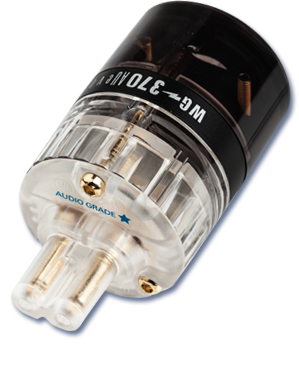

Wattgate 370auevo 370auevo small

click images for details

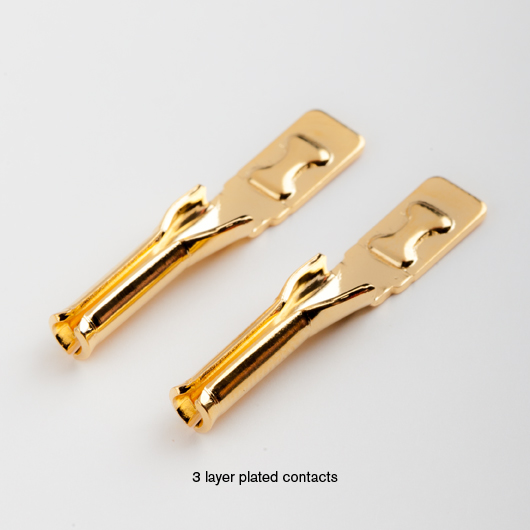

370 au evo contact
WattLock Box Detail

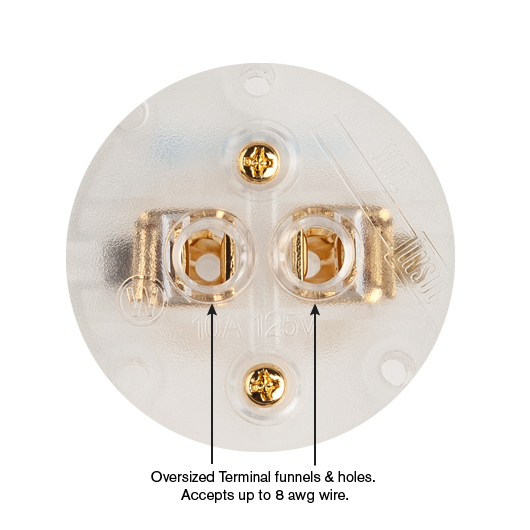

370 au evo funnels

size specifications

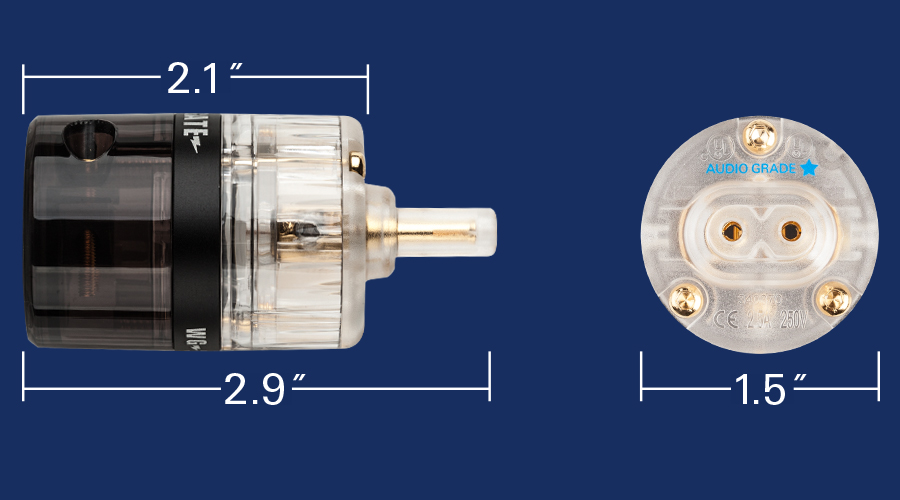

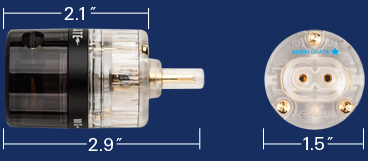

370 au evo measurements
