330i RH Audio Grade Power Connector

  • Audio Grade
  • Perma-Lock Terminals
  • Accepts 10 to 16 awg wire
  • Accepts 16mm cable diameter
  • Glass filled high temperature nylon front housing
  • Polycarbonate rear housing
  • Stainless hardware
  • Wattgate Four Layer Plating Process*
  • 15A/125VAC
*WATTGATE Four Layer Plating Process
1. Oxygen free copper plating
improves conductivity
2. Electroless nickel plating
necessary to prevent the leeching of the copper through the pure gold layer
3. 24k gold plating
improves conductivity
4. Pure Rhodium plating
Cryo Treated Logo

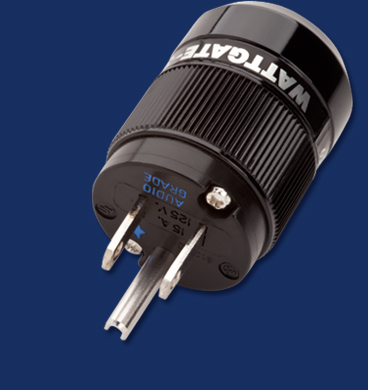

Wattgate 330i RH

click images for details

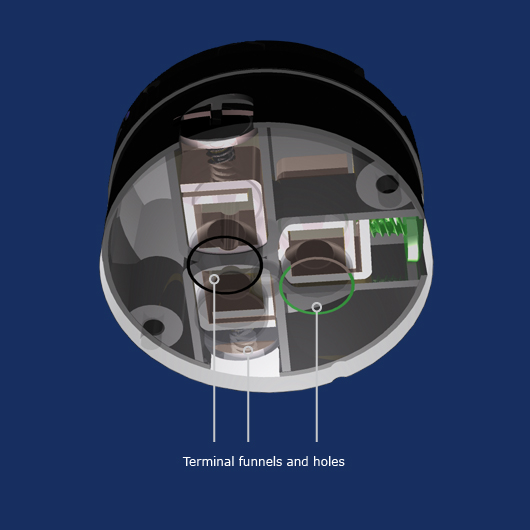

330i AG detail 1
330i AG detail 2

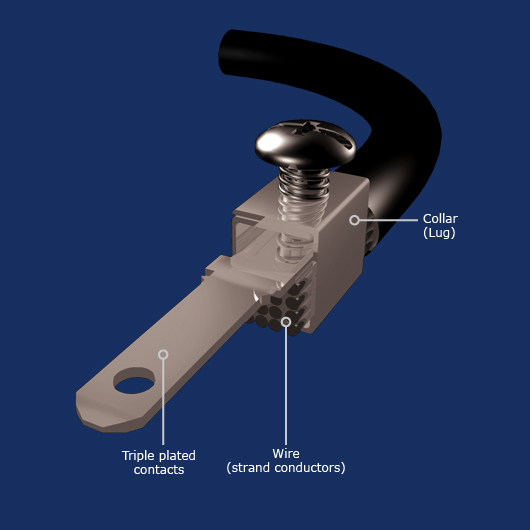

330i AG detail 3

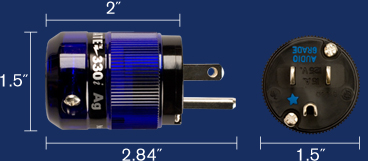

size specifications

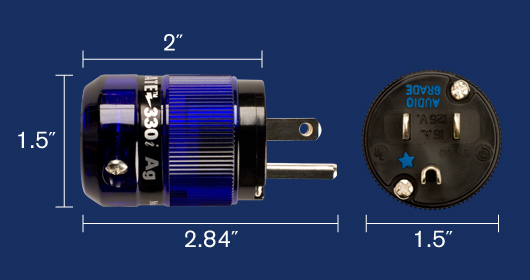

330i measurements
